Vector

Vector table tops await your choice of laminate and are attached to a steel frame that receives a powder coat of your choosing. Modesty panels are optional additions to the Vector table and can be finished in a laminate or veneer of your choice. Vector's legs are fitted with adjustable glides and can receive optional twin wheel locking casters. Vector tables play well with the Surfboard.

See Full Description

Cut Sheets

Vector Cut Sheet (.pdf, 906.926 KB)

AutoCAD

Vector AutoCAD (.zip, 2.806 MB)

List Price Sheets

Vector Tables List Price Sheet (.pdf, 377.13 KB)

Instructions

Vector Installation & Assembly Guide (.pdf, 403.636 KB)

Overview

Tops are 7/8" thick, three-ply 45# particleboard construction, with a .050" high pressure laminate top surface and a .030" phenolic backer. Corners on rectilinear tops: square corners on banded tops have 1/8" radius. Top is mounted directly to leg frames and stretcher.
Two 1-1/2" diameter 14 gauge steel legs are welded to a 1" x 2" steel tube frame to form a single, rigid end frame assembly. The steel tube frame consists of two angled members welded to 1/4" steel plate.
The under table support stretcher is constructed of 1" x 2" x 14 gauge steel tubing. Each end of the stretcher has a welded insert, drilled and tapped to receive (2) 1/4" - 20 machine bolts.
Legs are fitted with adjustable glides

Overall Dimension

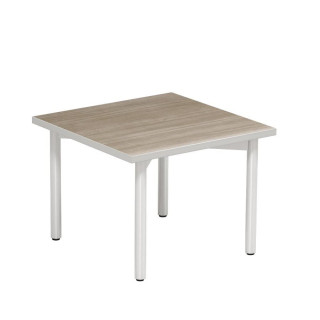

Depths: 24", 30", 36"
Widths: 36", 42", 48", 60", 72"

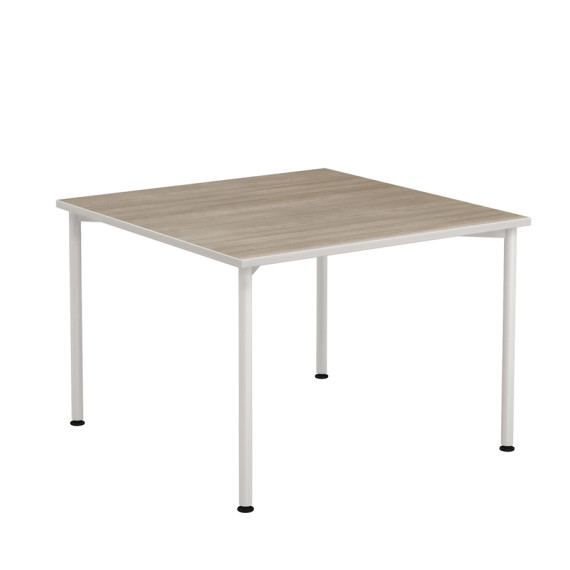

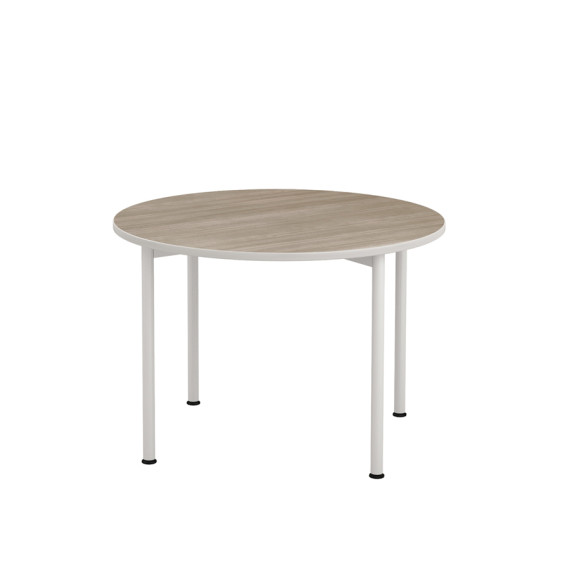

Square and Round: 42", 48"
Heights: 29"
