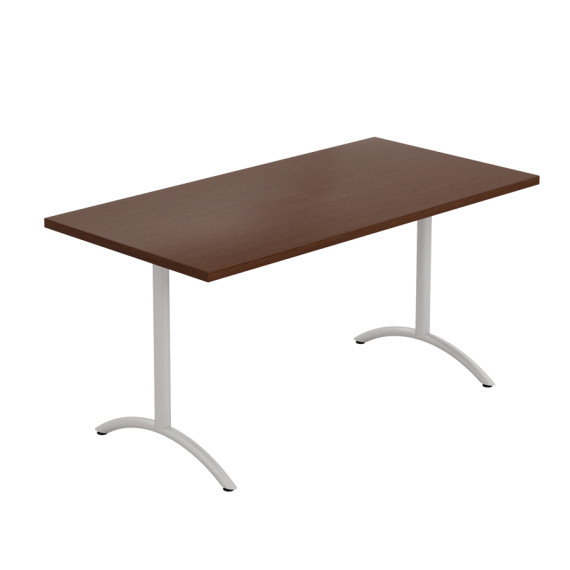

Rally

Simple, elegant lines fit in a variety of environments. Rally table is available with a t-base or x-base and in multiple sizes and heights. Single column- tables allow for the addition of a flip top steel mechanism. Choose a laminate and powder coat. Rally pairs well with Surfboard. Legs are fitted with levelers, casters are an available option.

See Full Description

Cut Sheets

Rally Table Cut Sheet (.pdf, 1.624 MB)

AutoCAD

Rally AutoCAD (.zip, 4.816 MB)

List Price Sheets

Rally T-Base List Price Sheet (.pdf, 497.828 KB)
Rally X-Base List Price Sheet (.pdf, 395.108 KB)

Instructions

Rally & Stance Installation & Assembly Guide (.pdf, 120.926 KB)

Overview

Table tops are 1-1/4" thick, three-ply 45# particle board construction, with .050" high-pressure laminate top surface and a .030" phenolic backer.
14-gauge, 2" column and 13-gauge, 1.375" base
Flip-Top: Two-part steel mechanism is joined via a pivot system. Upper component attaches to the underside of work surface using 1" #12 wood screws. Lower component bolts to the leg frame via a threaded insert. Flip-top is available on single column T-bases only.
Folding base mechanism: nylon injection molded body, with an extruded aluminum mechanism is bolted to leg frame via a threaded insert. Mechanism is attached to the underside of work surface using 1" #12 wood screws.
All bases include 1-3/8" diameter levelers
Casters available
Pairs well with Surfboard.

Overall Dimensions
Widths: 24", 30", 36", 48", 60"
Lengths: 36", 48", 60", 72", 84", 96"
Heights: 29", 36", 42"
